What types of plastic extrusion lines does BAOD EXTRUSION manufacture?

BAOD EXTRUSION manufactures four equipment families: precision tube/pipe extrusion lines, precision profile extrusion lines, coating extrusion lines, and individual units of extrusion lines such as extruders, vacuum sizing tanks, haul-offs, cutters and coilers.

Which industries do BAOD extrusion lines mainly serve?

The core focus is the automotive and medical industries: fuel, brake, vapor and coolant lines, corrugated conduits, TPV and PVC sealing strips, and PVC medical tubing. Lines are also supplied for detonating tube and general industrial tubing.

Can an extrusion line be customized for my tube or profile?

Yes. Each line is configured from the customer's product drawing, resin datasheet, tolerance target and required output, so screw design, die head, sizing and downstream equipment are matched to the specific product.

What information should I send to receive an accurate technical proposal?

Send the product drawing with OD, ID or profile dimensions, wall thickness and tolerance, the resin grade and datasheet, target line speed or output, layer structure, required downstream functions such as cutting or coiling, in-line inspection needs, and your local voltage and frequency.

How does BAOD EXTRUSION support overseas customers after delivery?

BAOD EXTRUSION provides installation and commissioning guidance, operator training, spare parts supply and remote technical support through its Global Service program.

How does a BAOD precision extrusion line compare with European equipment?

BAOD builds on a Taiwan-origin engineering heritage focused on precision extrusion. Buyers are advised to compare measured dimensional stability, scrap rate, automation level and service response on their own material rather than country of origin alone; BAOD supports material trials to make this comparison objective.

Custom Braided Reinforced Composite Hose/Tube Extrusion Line Product, Products

1 / 1

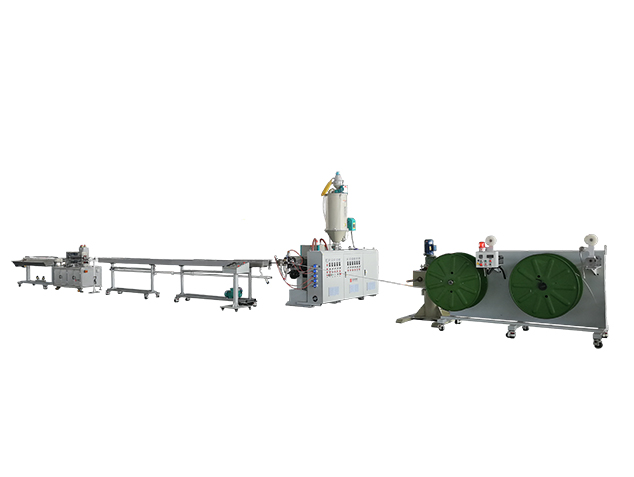

Custom Braided Reinforced Composite Hose/Tube Extrusion Line Product, Products

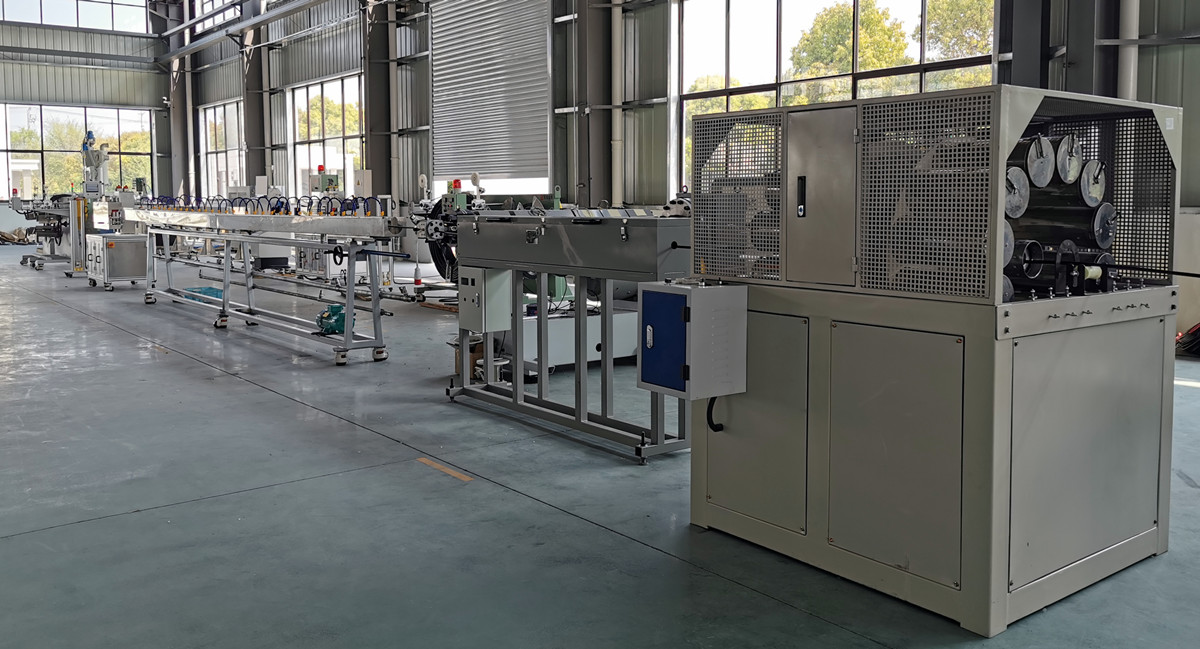

There are two kinds of extrusion processes: Two-step method: Inner layer tube extrusion & winding → unwinding braiding → unwinding outer layer coating and winding/cutting; One-step method: Extruding inner tube → online braiding → online coating extruding outer layer → winding/cutting.

Send Inquiry

Product Description

Production Line Features

The whole line is equipped with full SERVO drive to ensure stable operation of each technological link of extrusion, such as discharge, melt measurement, traction, etc.

Adopt the cast copper heater, which can meet the extrusion processing temperature up to 500℃.

Equipped with metering pump system, to ensure the accuracy of melt material extrusion, increase the die head pressure to avoid hollow inside.

Special design of hot air cooling molding function tank, suitable for PEEK high temperature material, PVA water soluble material cooling molding process.

Equipped with on-line OD detection and automatic feedback control function, the product dimension tolerance is controlled to the minimum to improve the automation level of the whole line.

Servo wiring traverse + PLC program control to achieve online precision and neat winding, both large and small spool can be used for neat winding.

Frequently Asked Questions (FAQ)

What materials are suitable for this extrusion line?

This system is engineered for processing high-temperature materials like PEEK as well as specialized polymers like PVA water-soluble materials, along with other standard extrusion compounds.

How does the line maintain dimensional accuracy?

Dimensional precision is maintained through integrated online outer diameter (OD) detection combined with automated closed-loop feedback, instantly compensating for any variations during production.

What is the highest operating temperature of the heating system?

The cast copper heaters are specifically designed to safely and stably achieve processing temperatures up to 500℃, accommodating ultra-high temperature engineering plastics.

How are internal hollows or voids avoided in the extruded product?

An inline melt metering pump system stabilizes extrusion volume and optimizes die head pressure, eliminating structural voids and ensuring high core density.

Can the winding system accommodate different spool dimensions?

Yes, the traverse mechanism controlled via servo motor and PLC program allows automated, precise winding adaptable for both small and large spools.

What role do the full servo drives play across the system?

The comprehensive servo setup synchronizes discharging, melt metering, and traction speeds, guaranteeing steady mechanical coordination and minimizing product defects.
