Precision Coating Extrusion Lines & Downstream Machinery
Explore our core custom manufacturing systems configured for multi-layer outer jacket coating, wire-core stabilization, and synchronized line automation.
The Global Coating Extrusion Ecosystem: High-Precision Outer Sheathing & Substrate Encapsulation
In modern polymer processing, coating extrusion lines represent an advanced apex where thermodynamic fluid modeling converges with rigid substrate handling.
Substrate Heterogeneity
Unlike standard solid wall pipe production, coating extrusion encapsulates disparate core substrates—including copper strands, pre-treated steel wire, braided textile cords, synthetic monofilaments, corrugated stainless conduits, and pre-formed elastomer tubes. Overcoming mismatch in thermal expansion coefficients requires specialized vacuum-assisted crosshead die geometries and dynamic thermal profiling.
Severe Operating Demands
Global demand is driven by transitioning energy infrastructures, electric vehicle high-voltage cabling (EV-HV), oil & gas offshore umbilical pipelines, and surgical endoscopy fluid management. Every application imposes strict chemical compatibility, anti-permeation barriers (EVOH/PA12), wear resistance, and long-term dielectric performance standards across wide thermal ranges (-40°C to +150°C).
Zero-Defect Inline Controls
Modern production facilities run non-stop campaigns where uncentered extrusion or coating eccentricity leads to expensive scrap. Incorporating dual-plane or multi-axis laser measuring systems, automated wall-thickness ultrasonic sensors, and synchronized haul-off tension control ensures that outer jacket thickness never drifts past critical engineering tolerances.
Why Tier-1 Manufacturers Source Coating Extrusion Lines from China
Combining rigorous Taiwan-origin precision heritage with Jiangsu’s advanced CNC manufacturing cluster, our factory delivers unmatched capital efficiency, rapid custom engineering cycles, and end-to-end integration.
Vertical In-House Metallurgy & Tooling
From 38CrMoAlA nitrided screw barrels to GH113 nickel-based superalloys for high-temperature fluoropolymer extrusion, our 16,000 m² Haian facility houses 5-axis CNC machining centers, vacuum heat treatment furnaces, and deep-hole drilling equipment. By controlling 90%+ of primary component machining in-house, we eliminate external supplier bottlenecks and maintain stringent dimensional tolerances.
30–45% Lower Capex with Zero Quality Drift
Procuring European or Japanese coating lines often entails prohibitive lead times (9 to 14 months) and inflated capital outlays. Our engineering model combines premium global electrical architectures (Siemens S7-1500 PLC, Schneider contactors, Omron sensors, ABB servo drives) with domestic structural engineering efficiency. This slashes your payback period while matching or exceeding Western performance standards.
Digital Factory Pre-Commissioning (FAT)
Every coating extrusion line undergoes exhaustive dry-run testing and optional resin qualification trials before leaving our shop floor. We replicate client core-substrate materials, measuring polymer melt pressure, temperature stability across the crosshead, puller tension synchronization, and cutter edge clean cuts. Clients receive complete telemetry validation reports before approving overseas sea-freight dispatch.
Engineered for High-Stress Industrial, Automotive, & Energy Domains
A comprehensive examination of mission-critical industries relying on our specialized coating and multi-layer extrusion architectures.

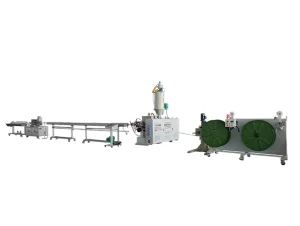

1. Automotive High-Pressure Fluid, Fuel & Thermal Management
Modern internal combustion, hybrid, and battery electric vehicles (BEVs) require tight permeation and vibration damping boundaries. Our lines apply continuous PA11/PA12, PVDF, or TPU outer jackets over inner braided conduits or fluoropolymer core layers. Key metric: Flawless interfacial adhesion without damaging internal textile reinforcement braid structures, delivering burst strengths up to 60+ bar for air conditioning and brake assist hydraulic systems.

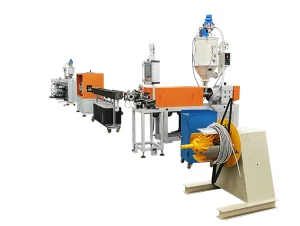

2. Steel Wire, Strand & Elevator Compensation Systems
Heavy civil infrastructure, suspension bridges, mining hoists, and high-rise elevator compensation chains demand high-density polyethylene (HDPE), polypropylene, or PVC coating to prevent internal friction corrosion, damp operational noise, and seal against saltwater exposure. Our specialized metal pipe and wire coating lines feature pre-heating induction stations and adjustable centering crossheads capable of handling high core line tensions without jacket deformation.
3. Subsea Umbilical Cables & Corrugated Metal Conduit Jacketing
Flexible corrugated metal pipes and offshore electrical conduits require polymer jacketing that conforms perfectly into the outer convolution grooves without bridging or air entrapment. Utilizing closed-loop vacuum crosshead tooling with adjustable differential pressure zones, our extrusion systems guarantee 100% circumferential encasement, eliminating void gaps where hydrostatic moisture could concentrate.
4. Telecommunication Micro-Duct & Fiber Optic Bundles
In high-density 5G FTTH rollouts, micro-duct networks utilize an inner silicore friction-reducing composite layer surrounded by a durable HDPE protective skin. Precision cross-sectional thickness control is paramount to permit long-distance cable jetting (up to 2,000m blow distance) without ballooning under dynamic pneumatic insertion pressures.
Technical Specification Matrix: Coating Extrusion Platforms
Compare operational envelopes, processing resins, screw geometries, and line configurations tailored for diverse production environments.
| Line Series | Target Substrate Range | Applicable Polymers | Extruder Screw L/D | Max Line Speed | Concentricity Metric |
|---|---|---|---|---|---|
| BCC-Series (Braided Hose) | Ø 4.0 mm – Ø 32.0 mm | PU, TPU, PA6/11/12, TPE, PVC | 28:1 to 32:1 (Barrier/Melt) | 25 – 80 m/min | ≥ 95% Concentricity |
| MPC-Series (Metal Pipe Coating) | Ø 8.0 mm – Ø 110.0 mm | HDPE, MDPE, PP, Crosslink PE | 30:1 to 34:1 (Grooved Feed) | 5 – 35 m/min | ± 0.03 mm Radial |
| WSC-Series (Steel Strand/Wire) | Ø 1.5 mm – Ø 22.0 mm | PVC, HDPE, Polyamide, TPU | 25:1 to 30:1 (High Torque) | 40 – 120 m/min | ± 0.02 mm Axial |
| MCC-Series (Corrugated Pipe) | DN 6 mm – DN 50 mm | PA6, PA12, PP Flame Retardant | 28:1 (Decompressed Venting) | 15 – 60 m/min | Full Valley Infill |
| PFT-Series (Fluoropolymer Tube) | Ø 0.5 mm – Ø 16.0 mm | FEP, PFA, ETFE, PVDF | 25:1 to 28:1 (Hastelloy B/C) | 10 – 50 m/min | ± 0.015 mm Micro |
Emerging Technological Trends Reshaping Extrusion Manufacturing
The extrusion sector is transitioning from manual operator-reliant monitoring to autonomous closed-loop intelligence and sustainable circular materials.
Closed-Loop Servo Melt Pump Synchronization
Traditional extruders suffer from pressure pulsations caused by solid-bed breakup in the transition zone. Our advanced lines incorporate high-precision positive-displacement melt gear pumps directly upstream of the crosshead. Coupled with millisecond servo-response algorithms, melt volume discharge remains rock-steady (fluctuation < 0.15%), eliminating micro-surges that compromise jacket concentricity.
AI Predictive Thermal Profiling & Edge Analytics
Modern lines integrate IoT edge gateways that sample barrel zone temperatures, screw back-pressure, melt rheology indicators, and haul-off drag coefficients at 50Hz. Machine learning routines predict thermal drift caused by ambient factory climate changes or batch-to-batch resin MFI shifts, automatically trimming zone heating/cooling duty cycles before wall thickness deviates.
High-Fraction PCR & Bio-Based Polymer Processing
With stringent global carbon footprint policies (EU CBAM, Scope 3 audits), processors are mandated to run up to 40% post-consumer recycled (PCR) resin or bio-polyamides (e.g., castor-oil-derived PA11). Our custom barrier screws utilize specialized distributive and dispersive mixing elements (Maddock + Saxton) to homogenize regrind contaminants without generating damaging shear-induced melt degradation.
How Engineering Directors Audit & Specify Coating Extrusion Lines
Avoid expensive procurement misalignments by evaluating vendor proposals across critical mechanical and process boundaries.
1. Define True Substrate Pre-Conditioning Parameters
Never treat the substrate as an inert core. Buyers must detail core cleanliness, surface tension (dynes/cm), wire oil residues, pre-heat requirements (induction vs. infrared), and in-feed tension range. Without pre-heating, cold metal substrates quench the plastic melt too rapidly, creating micro-voids, poor adhesion, and premature outer skin delamination under cyclic flex tests.
2. Crosshead Die Metallurgy & Flow Channel Flow Modeling
Demand numerical CFD rheology simulations of the crosshead tool design. Stagnant melt pockets create degraded polymer specks (black spots) that ruin surface aesthetics and induce electrical breakdown. For halogen-free flame retardant (HFFR) compounds or fluoroplastics, verify that the flow channel surfaces are machined from corrosion-resistant nickel alloys and mirror-polished (Ra < 0.05 μm).
3. Downstream Tension Synchronization & Sizing Baths

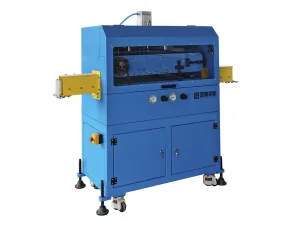

In coating lines, downstream haul-off equipment must not stretch the hot encapsulated jacket while cooling. Specify dual multi-belt pullers equipped with digital load-cell tension feedback linked directly to the main extruder drive. Vacuum calibration sizing tanks must feature precision water temperature regulation (±0.5°C) across multi-stage cooling zones to suppress internal residual cooling stresses.
Frequently Asked Questions: Coating Extrusion Line Engineering
In-depth responses from our chief design engineers covering tooling, polymer physics, line integration, and international operational logistics.
What distinguishes a pressure tooling setup from a tubing/sleeve tooling setup in coating extrusion?
How do your extrusion lines ensure zero-defect concentricity when coating uneven metal conduits or corrugated hoses?
Can a single BAOD extrusion line process both high-temperature engineering plastics (e.g., PVDF, FEP) and standard polyolefins (HDPE, PP)?
What documentation and international compliance certifications accompany BAOD extrusion machinery shipments?
How does BAOD support global installation, commissioning, and continuous operator training?
Precision Extrusion Lines, Profile Systems, & Automated Auxiliary Units

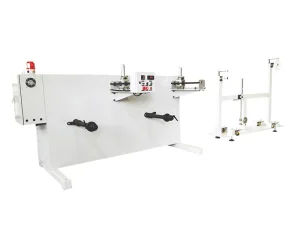

Complete your production ecosystem with automated spool-changing coilers, crawler pullers, single screw extruders, and micro-duct lines.
