Examining capital expenditure disparities, operational efficiency, and supply chain rationalization across worldwide extrusion manufacturing centers.
CapEx Allocation Pressures
Modern extrusion processors face mounting margin pressures. European legacy systems require astronomical initial capital expenditures, frequently carrying payback schedules exceeding 5 to 7 years. In contrast, advanced Chinese precision systems engineered under ISO 9001 quality directives achieve amortization within 18 to 24 months.
Energy & Melt Homogeneity
Global conversion costs are directly tied to specific energy consumption (SEC measured in kWh/kg). Modern lines integrate closed-loop torque vectoring and ceramic-embedded infra-red heater bands, lowering energy overhead by up to 22% while keeping polymeric melt pressure variance within ±0.25 bar.
Material Versatility Demands
Engineering polymer matrices have shifted rapidly from standard Polyolefins (PE, PP) toward engineering fluoropolymers, high-barrier Polyamides (PA11, PA12), bio-resins (PLA, PHA), and Thermoplastic Vulcanizates (TPV). Modern lines must maintain non-degrading rheological channels across vastly different processing temperatures.
The Anatomy of Plastic Extrusion Machine Cost in China
Understanding cost formation across metallurgy, mechanical drives, precision die toolings, downstream kinematics, and automation integration.
| Subsystem Component | Tier-1 China Factory Spec (e.g., BAOD) | Budget Regional Builders | European Legacy Reference | Cost Impact Drivers |
|---|---|---|---|---|
| Screw & Barrel Metallurgy | SACM 645 nitrided or Tungsten carbide bimetallic sleeve (hardness HV ≥ 980) | Standard 38CrMoAlA with shallow nitriding layers (< 0.4mm) | High-end bimetallic alloy with hot isostatic pressing (HIP) | Abrasive wear life, stability under high backpressures, plasticizing shear control |
| Drive Train & Gearbox | High-torque helical gearboxes with forced lubrication, Siemens/ABB servo drives | Locally sourced generic spur gearboxes, unbranded variable frequency inverters | Flender/SEW multi-stage reduction boxes with integrated water-cooling loops | Torque density, thermal dissipation, continuous speed drift, operational dB levels |
| Extrusion Die & Tooling | 3Cr13 / 4Cr13 vacuum-hardened tool steel, mirror-polished (Ra < 0.02 μm) | Standard #45 carbon steel or low-grade stainless with irregular flow channels | Custom-machined tool steel with computational fluid dynamic (CFD) profiling | Concentricity, polymer degradation, melt flow lines, rapid purging times |
| Vacuum Cooling & Calibration | SUS304 anti-corrosion tank, dual-chamber multi-axis servo alignment, spray bars | Thin sheet iron or lower-grade SUS201 with manual handwheel adjustment | Closed-loop vacuum with electronic water temperature and flow proportional valves | Roundness control, collapse resistance, cooling cycle optimization |
| Puller & Downstream Cutting | Precision multi-caterpillar servo puller, non-marking belts, planetary or fly-knife | Friction wheel or chain drive puller, standard mechanical blade with high crush rate | Magnetic levitation or servo haul-off with ultra-low backlash zero-crossing | Linear speed stability, pipe wall deformation, end-face burr formation |
When international procurement teams audit a plastic extrusion machine cost from Chinese suppliers, pricing divergence is rarely arbitrary. A complete precision medical extrusion line may range from $35,000 to $120,000+ USD within China, depending on automation, metallurgy, and line speed synchronization. The lower tier targets low-specification construction conduit or flexible drain tubes where dimension variation of ±0.3 mm is tolerable. Conversely, Tier-1 industrial partners like BAOD EXTRUSION engineer lines dedicated to mission-critical automotive fuel tubes, multi-lumen vascular catheters, and TPV architectural profiles where tolerances must reliably remain within ±0.01 mm to ±0.03 mm.
Chinese efficiency advantages stem from complete regionalized supply chains located within Jiangsu and Zhejiang provinces. Raw forged steels, heat treatment furnaces, high-precision five-axis machining centers, and localized sensor networks operate within a 50-kilometer radius. This geographic compression cuts logistical lead times, reduces sub-tier contractor margins, and enables continuous custom line optimization without the prohibitive overheads seen in Central Europe.
Engineered Application Sectors & Strategic Utility
Precision-engineered configurations addressing strict validation criteria in automotive, medical, construction, and high-hazard mining operations.
Automotive Fluid Transfer
Engineered for multi-layer co-extrusion (PA12 / EVOH / PA6) lines. Essential for modern combustion, hybrid, and electric vehicle battery cooling loops. Resists hydrocarbon permeation, high operational pressures, and extreme under-hood thermal cycles.
Medical Cleanroom Tubing
Built for Class 10,000 cleanroom environments. Used in manufacturing IV lines, micro-lumen catheter sleeves, and respiratory circuits utilizing medical-grade plasticized PVC, TPU, and PEEK with complete bio-inertness.
TPV & PVC Sealing Systems
Continuous dynamic co-extrusion for vehicle door seals, windows, and building gaskets. Features integrated metal carrier insertion, inline flocking, and high-speed rotary vulcanization monitoring to eliminate acoustic wind noise.
Industrial & Detonator Tubes
Tailored lines for non-electric shock tubes used in civil mining and demolition. Demands rigorous continuous powder-dosing uniformity, sub-millimeter inner bore consistency, and high tensile elongation resilience.
Next-Generation Extrusion Technology & Smart Factory Trends
How Industry 4.0, digital twin control, and closed-loop measurement reduce scrap and redefine operating efficiencies.
Closed-Loop Laser Gauging
Real-time dual-axis laser OD and high-frequency ultrasonic wall-thickness monitors directly feed back into haul-off servo drives. Any thermal expansion or resin viscosity drift triggers automated micrometer adjustments in line draw-down ratio, cutting material waste during startup by up to 70%.
Gravimetric Loss-In-Weight Dosing
Multi-component gravimetric feeders continuously calculate exact throughput in kg/h down to fractional gram accuracy. Coupled with automated resin dehumidifying silos, processors eliminate core density voids, wall-thinning defects, and polymer discoloration.
Predictive Cloud Maintenance
BAOD lines feature standardized OPC-UA and Ethernet/IP protocols for seamless MES (Manufacturing Execution System) connectivity. Remote diagnosis modules enable factory engineers to evaluate drive harmonics, heating zone PID loops, and mechanical torque limits off-site.
Specialized Co-Extrusion, Medical & Profile Machinery
Explore customized single-screw extruders, continuous automotive sealing lines, multi-layer corrugated pipelines, and high-speed precision cutters.
China QYP Series Belt Puller
Explore Machine Specs

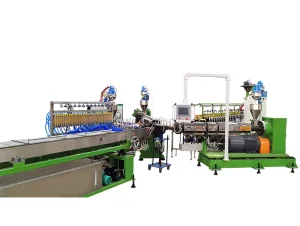

Custom TPV, PVC Automobile Sealing Strip Extrusion Line
Explore Machine Specs
China High Speed PVC Medical Tube Extrusion Line
Explore Machine Specs
Custom Steel Wire / Strand / Corrugated Pipe Coating Extrusion Line
Explore Machine Specs
China Multi-Layer PA Smooth / Corrugated Hose/Tube Extrusion Line
Explore Machine Specs
Custom Shaft Type Winding Machine
Explore Machine Specs
China FQ Series Rotary Fly Knife Cutter
Explore Machine Specs
China SJ Series Single Screw Extruder
Explore Machine SpecsGlobal Procurement Strategy & TCO Calculations
A rigorous Total Cost of Ownership (TCO) protocol for corporate plant managers, procurement executives, and production directors.
Acquiring extrusion machinery involves calculating capital equipment lifecycle cost rather than merely evaluating the initial FOB or CIF quote. Savvy plant managers across North America, Europe, Southeast Asia, and Latin America base capital authorizations on TCO (Total Cost of Ownership) models consisting of three major pillars:
1. CapEx & Commissioning
Includes basic machine frame, specialized tooling dies, calibration units, haul-off downstream systems, cross-ocean shipping, transit insurance, import tariffs, and on-site commissioning expenses. Chinese manufacturing efficiencies commonly offer a 40% to 60% direct entry advantage here.
2. Direct Operational Costs (OpEx)
Calculated as [Energy consumption per kg of resin converted] + [Scrap rate during profile changeovers] + [Periodic barrel wear re-sleeving]. High-precision gear drives and optimized screw L/D ratios preserve resin stability and limit regrind waste to below 2.5%.
3. Availability & Maintenance
Unscheduled line stops in precision extrusion cause complete cooling baths to freeze and dies to back up. BAOD integrates industrial off-the-shelf control components (Schneider, Omron, Siemens) and bimetallic barrel liners to guarantee operational availability over 96.8%.
When executing supplier validation in China, procurement teams must look beyond glossy marketing brochures. Reviewing the manufacturer's internal machining capabilities is vital: Does the factory maintain their own CNC machining centers, nitriding facilities, and testing labs? Jiangsu Baodie Automation Equipment Co., Ltd. (BAOD EXTRUSION) traces its mechanical engineering heritage back to 2002, emerging from early Taiwanese precision machinery expertise. Operating an extensive 16,000 m² assembly plant in Haian, Nantong, Jiangsu, BAOD exercises direct internal quality control over die wire-cutting, barrel honing, and PLC synchronization, mitigating the performance risks commonly associated with small subcontract brokers.
