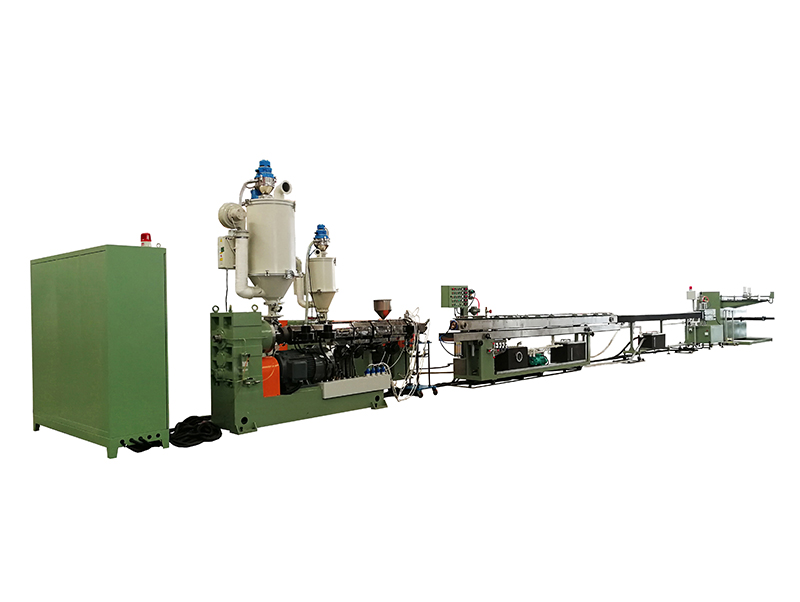

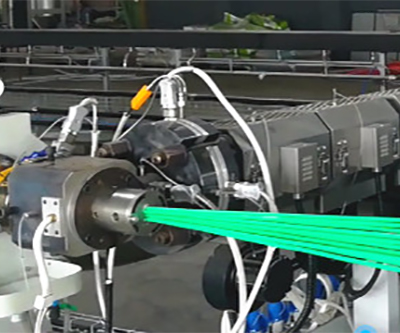

Custom HDPE Silicone Core Tube (Micro Duct) Extrusion Line Factory, Products
Product Description
| Model | Processing Tube Range (mm) | Screw Diameter (mm) | (L/D) | Main Motor Power (kW) | Production Speed (m/min) |
|---|---|---|---|---|---|
| SXG-45x25 | 4.0～10.0 | 45+25 | 28-30 | 11 | 5-30 |
| SXG-50x30 | 6.0～18.0 | 50+30 | 28-30 | 18.5 | 8-45 |
| SXG-65x30 | 8.0～25.0 | 65+30 | 28-30 | 30 | 8-80 |
| SXG-90x45 | 12.0～40.0 | 90+45 | 28-30 | 45 | 8-120 |
Frequently Asked Questions (FAQ)
What is the processing tube diameter range covered by the SXG series?
The SXG series can process tube diameters starting from 4.0 mm up to 40.0 mm depending on the specific model selected.
What are the maximum production speeds available?
Depending on the machine model, production speeds range from 5-30 m/min on the SXG-45x25 up to 8-120 m/min on the high-capacity SXG-90x45 model.
What is the standard screw length-to-diameter (L/D) ratio for these models?
All models in this series feature a uniform screw length-to-diameter (L/D) ratio ranging between 28 and 30 for stable extrusion.
How much main motor power is required for operation?
Main motor power requirements range from 11 kW for model SXG-45x25 up to 45 kW for model SXG-90x45.
Which model is recommended for tube processing between 6.0 mm and 18.0 mm?
The SXG-50x30 model is configured for a tube range of 6.0～18.0 mm with an 18.5 kW main motor and a production speed of 8-45 m/min.
