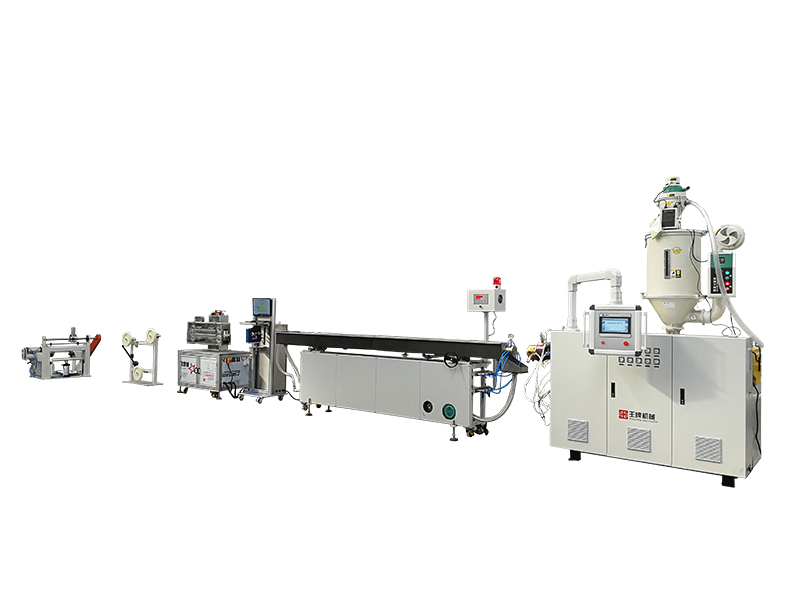

Custom Precision Fluorine Plastic Tube Extrusion Line Factory, Products
Product Description
The barrel and screw of extruder adopt new #3 mold steel material, with good corrosion resistance and high temperature resistant, can meet fluorine plastic extrusion plasticizing processing.
The heating of the barrel is made of copper or cast steel heater, can meet the stable production of the highest processing temperature 500 ℃.

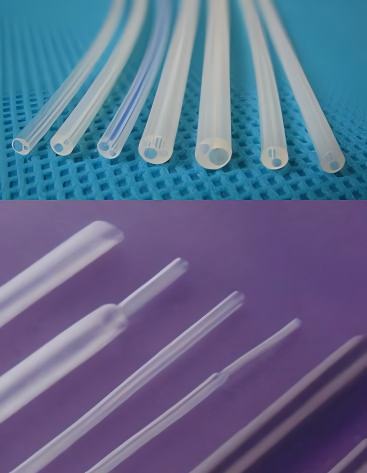

The die adopts advanced CNC processing technology and electrochemical machining method for the precision processing, meet a diameter range ≤1.0mm catheter ideal forming.
Mold material is also new #3 mold steel, with good corrosion resistance and high temperature resistant performance.
Adopting the new concept "weak vacuum forming" technology: vacuum and water system separately control, through the multi-stage water balance control system and vacuum system unified coordination to ensure the production process is vacuum stable, cooling water surface smooth and flow stable.
Vacuum control uses a more precise way, can achieve control accuracy of -0.01KPa level.
Different fluorine plastics have different processing temperature, melt viscosity, liquidity and so on, the corresponding calibration means also have a great variety: vacuum dry calibration, vacuum immersion bath calibration, internal pressure calibration and the other different ways.
What material is used for the barrel, screw, and mold?
They adopt new #3 mold steel material, which provides high corrosion resistance and high temperature resistance necessary for fluorine plastic extrusion plasticizing processing.
What is the maximum operating temperature of the heating system?
The heating system utilizes copper or cast steel heaters to ensure stable continuous production up to a maximum temperature of 500 ℃.
What catheter dimensions can be formed with the die?
Using CNC processing and electrochemical machining methods, the die enables precision forming for micro-catheters with a diameter range of ≤1.0mm.
How does the "weak vacuum forming" technology operate?
The vacuum and water systems are controlled independently. Through multi-stage water balance control combined with vacuum coordination, it maintains vacuum stability, a smooth cooling water surface, and uniform flow.
What precision level is achievable for vacuum control?
The high-precision vacuum control system achieves an accuracy level of -0.01KPa.
Which calibration methods are supported for different fluorine plastics?
To suit various melt viscosities, liquidity, and temperatures, calibration methods include vacuum dry calibration, vacuum immersion bath calibration, internal pressure calibration, and other specialized configurations.
