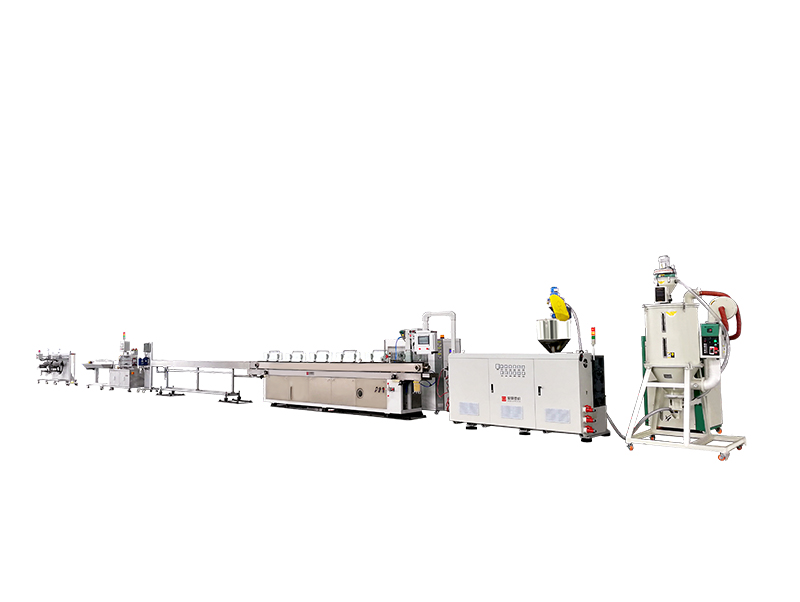

China PU (Polyurethane) Precision Tube Extrusion Line Manufacturer, Factory
Product Description
| Model | Process pipe diameter range (mm) | Screw diameter (mm) | L/D | Main power (KW) | Output (Kg/h) |
|---|---|---|---|---|---|
| SXG-45 | 2.5～8.0 | 45 | 28-30 | 15 | 18-30 |
| SXG-50 | 3.5～12.0 | 50 | 28-30 | 18.5/22 | 28-45 |
| SXG-65 | 5.0～16.0 | 65 | 28-30 | 30/37 | 55-75 |
| SXG-75 | 6.0～20.0 | 75 | 28-30 | 37/45 | 80-100 |
| OD (mm) | Producing speed (m/min) | Diameter control accuracy (mm) |
|---|---|---|
| ≤4.0 | 30-60 | ±0.05 |
| ≤6.0 | 23-45 | ±0.05 |
| ≤8.0 | 18-35 | ±0.08 |
| ≤10.0 | 16-25 | ±0.08 |
| ≤12.0 | 14-20 | ±0.10 |
| ≤14.0 | 12-18 | ±0.10 |
| ≤16.0 | 10-15 | ±0.12 |
The SXG series covers outer diameter pipe processing ranges from 2.5 mm up to 20.0 mm across different models, including SXG-45, SXG-50, SXG-65, and SXG-75.
Depending on the outer diameter of the pipe, precision control ranges from ±0.05 mm for smaller profiles (≤4.0mm to ≤6.0mm) up to ±0.12 mm for profiles ≤16.0mm.
Depending on the machine model selected, the output capacity ranges between 18 Kg/h on the SXG-45 model up to 80-100 Kg/h on the SXG-75 model.
Smaller diameter tubing allows for higher production speeds (e.g., ≤4.0mm runs at 30-60 m/min), while larger diameters run at lower, controlled speeds (e.g., ≤16.0mm runs at 10-15 m/min) to maintain precision.
The screw diameters range from 45 mm to 75 mm corresponding to the model number, with an optimized length-to-diameter ratio (L/D) of 28-30 for consistent plasticizing and output stability.
