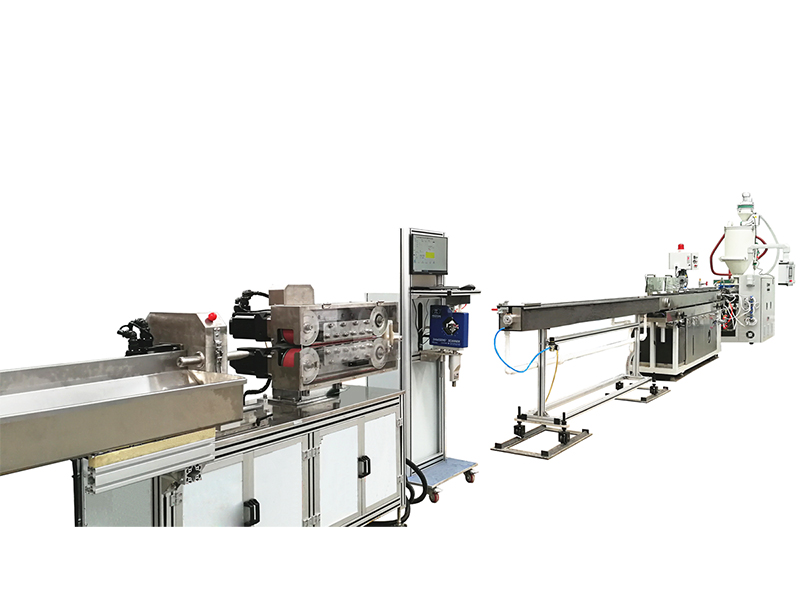

China LDPE,HDPE,PP Precision Tube Extrusion Line Manufacturer, Factory
Product Description
Extrusion Line Specifications
| Model | Process Pipe Diameter Range (mm) | Screw Diameter (mm) | L/D | Main Power (KW) | Output (Kg/h) |
|---|---|---|---|---|---|
| SXG-30 | 1.0～6.0 | 30 | 28-30 | 5.5 | 5-10 |
| SXG-45 | 2.5～8.0 | 45 | 28-30 | 15 | 25-30 |
| SXG-50 | 3.5～12.0 | 50 | 28-30 | 18.5 | 32-40 |
| SXG-65 | 5.0～16.0 | 65 | 28-30 | 30/37 | 60-75 |
| SXG-75 | 6.0～20.0 | 75 | 28-30 | 37/45 | 80-100 |
Production Speed & Accuracy
| OD (mm) | Producing Speed (m/min) | Diameter Control Accuracy (≤mm) |
|---|---|---|
| ≤4.0 | 65-120 | ±0.04 |
| ≤6.0 | 45-80 | ±0.05 |
| ≤8.0 | 30-48 | ±0.05 |
| ≤10.0 | 23-32 | ±0.08 |
| ≤12.0 | 18-26 | ±0.10 |
| ≤16.0 | 10-18 | ±0.10 |
Cutting Accuracy Parameters
| Parameter | ≤50mm | ≤400mm | ≤1000mm | ≤2000mm |
|---|---|---|---|---|
| Cutting Length | ≤50mm | ≤400mm | ≤1000mm | ≤2000mm |
| Cutting Accuracy | ±0.5mm | ±1.5mm | ±2.5mm | ±4.0mm |
Frequently Asked Questions (FAQ)
What models are available for this pipe extrusion system?
The system comes in five models: SXG-30, SXG-45, SXG-50, SXG-65, and SXG-75, covering outer diameters from 1.0 mm up to 20.0 mm.
What is the maximum output capacity of the largest unit?
The SXG-75 model provides the highest capacity, delivering an output between 80 to 100 Kg/h with a 37/45 KW main power drive.
How fast can small-diameter tubing be extruded?
For pipes with outer diameters of ≤4.0 mm, the equipment achieves stable production speeds ranging from 65 to 120 m/min with a diameter tolerance of ±0.04 mm.
What is the cutting accuracy across different tube lengths?
Cutting precision depends on length: ±0.5 mm for lengths ≤50 mm, ±1.5 mm for ≤400 mm, ±2.5 mm for ≤1000 mm, and ±4.0 mm for lengths up to 2000 mm.
What is the standard screw length-to-diameter ratio (L/D)?
All models in the SXG series are engineered with a uniform L/D ratio of 28-30 to ensure consistent plasticization and extrusion stability.
