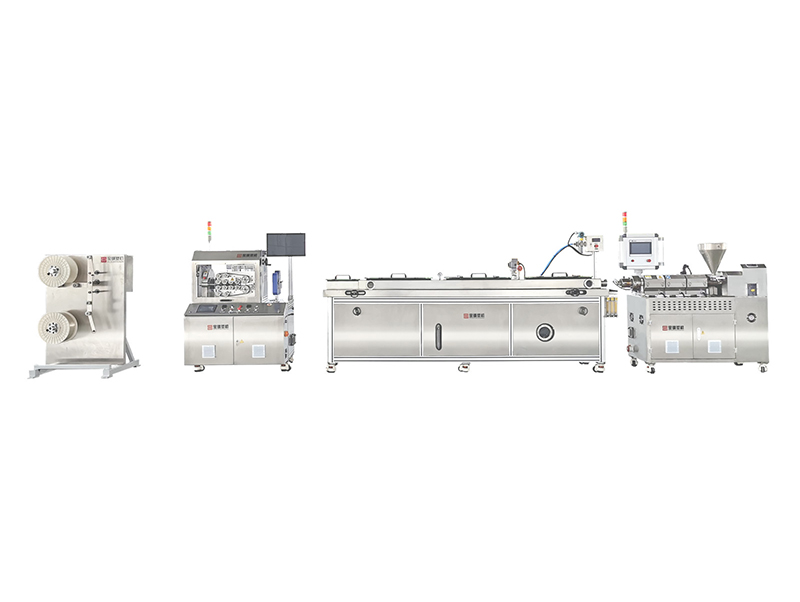

Custom Precision Medical Tube Extrusion Line Manufacturers, Factory
Product Description
Optimum Design Screw & Driving System: Engineered with an optimum design screw and driving system, ensuring superior extrusion and plasticization performance.
High-Precision Die & Core Rods: Built with S136 mould steel for inner flow glossiness and corrosion resistance. The proprietary "high pressure volumetric type" structure guarantees stable and high-speed tube extrusion with minimal fluctuation.
Weak Vacuum Accurate Control: Employs independent vacuum and water system controls combined with multilevel water balancing to stabilize vacuum degree, cooling liquid levels, and dynamic flow.
Online Laser Measurement: Integrated LaserMike bi-direction high-speed diameter measurement monitors dimensions on line, reaching a precision tolerance of ±0.001MM.
Medical-Grade Puller Unit: Features imported multilayer composite wearable belts matching medical sanitary criteria, paired with precision rollers and SERVO motor drives for high stability pulling.
Servo Cutting & Automation: Low inertia aluminum alloy rotary knife arm powered by a Servo system. Controlled via Japan Mitsubishi PLC and SIEMENS HMI for continuous, timed, or length counting cuts with automatic counting.
| Model | Processing pipe diameter range (mm) | Screw diameter (mm) | L/D | Main motor power (KW) | Capacity (Kg/h) |
|---|---|---|---|---|---|
| SXG-30 | 0.2～3.0 | 30 | 25-28 | 3.7/5.5 | 5-10 |
| SXG-45 | 1.5～8.0 | 45 | 25-28 | 11/15 | 24-38 |
| SXG-50 | 2.0～12.0 | 50 | 28-30 | 15/18.5 | 30-45 |
| SXG-65 | 3.0～16.0 | 65 | 28-30 | 30/37 | 55-80 |
| SXG-75 | 4.0~25.0 | 75 | 28-30 | 37/45 | 70-110 |
| OD (mm) | Producing speed (m/min) | Control precision ≤mm |
|---|---|---|
| ≤1.0 | 100-180 | ±0.01 |
| ≤3.3 | 60-160 | ±0.02 |
| ≤4.5 | 45-160 | ±0.04 |
| ≤5.3 | 40-120 | ±0.05 |
| ≤7.0 | 35-80 | ±0.06 |
| ≤9.3 | 25-40 | ±0.07 |
| ≤12.0 | 16-35 | ±0.10 |
| Cutting length | ≤50mm | ≤300mm | ≤1000mm |
|---|---|---|---|
| Control precision | ±0.5mm | ±1.0mm | ±2.0mm |
The core rods and dies are made of premium S136 mould steel, which provides high glossiness along the inner flow surface and ensures strong anti-corrosion protection.
The line adopts a LaserMike bi-direction high-speed diameter measurement unit that monitors outer dimensions in real time, capable of reaching an accuracy of ±0.001MM.
It features a weak vacuum accurate control design where the vacuum and water systems are regulated independently, coordinating multilevel water balancing with vacuum stability.
Yes, the puller utilizes imported multilayer composite wearable belts designed specifically to meet stringent medical sanitary requirements.
The cutter is driven by a Servo system and managed by a Japan Mitsubishi PLC with a SIEMENS touchscreen interface, supporting continuous cutting, timing cuts, and length counting modes.
